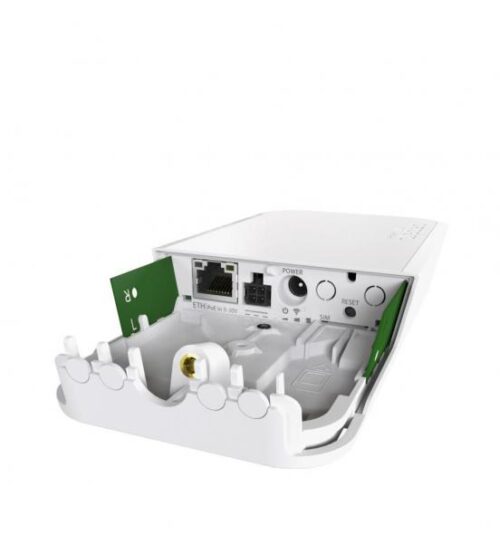

The wAP LTE is a small weatherproof wireless access point with a built in cellular modem that supports 2G, 3G and 4G (LTE) connectivity. Connect to the wAP’s built-in 802.11b/g/n wireless and access the LTE network from your phone or any other wireless device. The wAP LTE also has one 10/100 Ethernet LAN port for your wired devices.

LTE cards are connected to two internal antennas with u.FL connectors, so if you want, you can unplug the connectors and add your own external LTE antenna for larger coverage. Unit has the several powering options – 9-30v PoE-in by Ethernet port, DC jack and Automotive connector, very handy in mobile devices like car, bus or train. RBwAPR-2nD&R11e-LTE includes LTE modem that supports International LTE bands 1,2,3,7,8,20,38 and 40.

Specifications wAP LTE kit

Architecture: MIPSBE
CPU: QCA9531
CPU core count: 1
CPU nominal frequency: 650 MHz
Dimensions: 185 x 85 x 30 mm
License level: 4
Operating System: RouterOS
Size of RAM: 64 MB
Storage size: 16 MB
Storage type: FLASH
Tested ambient temperature: -40 C to 60 C

PoE in: Passive PoE
PoE in input Voltage: 9-30 V
Number of DC inputs: 3 (DC jack, PoE-IN, Automotive)
DC jack input Voltage: 9-30 V
Automotive input Voltage: 9-30 V
Max power consumption: 8 W
10/100 Ethernet ports: 1

Package Contents

RBwAPR-2nD&R11e-LTE, 24V 0.8A power adapter, PoE injector, Plastic yip tie, 0.35m 4pin Automotive adapter cable, wAP mount bracket, wAP desktop stand.
