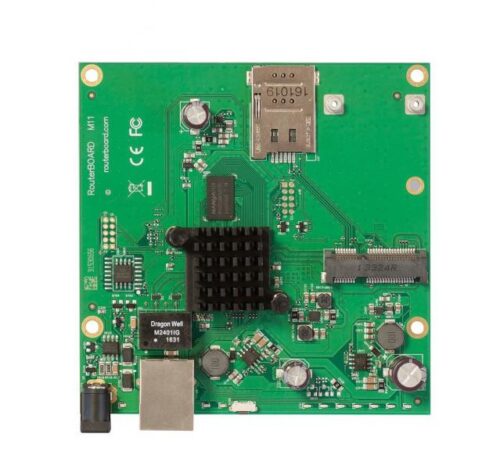

The RBM11G is a fully featured RouterBOARD device perfect for using with your own enclosure or building a custom solution. It uses the same square PCB and mounting holes as its predecessors, you can simply swap out the older models with the brand new RBM11G.

The RBM11 features a new MediaTek dual core CPU running at 880MHz, a miniPCIe slot for using with a WiFi module of your choice, or with a 3G/ LTE modem (SIM slot provided). The device can be powered by PoE through its gigabit ethernet connector or through the DC power jack.

Specifications RBM11G

Architecture: MMIPS
CPU: MT7621A
CPU core count: 2
CPU nominal frequency: 880 MHz
CPU Threads count: 4
Dimensions: 105 x 110 mm
License level: 4
Operating System: RouterOS
Size of RAM: 256 MB
Storage size: 16 MB

PoE in: Passive PoE
PoE in input Voltage: 10-30 V
Number of DC inputs: 2 (DC jack, PoE-IN)
DC jack input Voltage: 10-30 V
Max power consumption: 11 W
10/100/1000 Ethernet ports: 1
Number of SIM slots: 1 Modem (Mini SIM)
MiniPCI-e slots: 1

Package Contents

RBM11G
