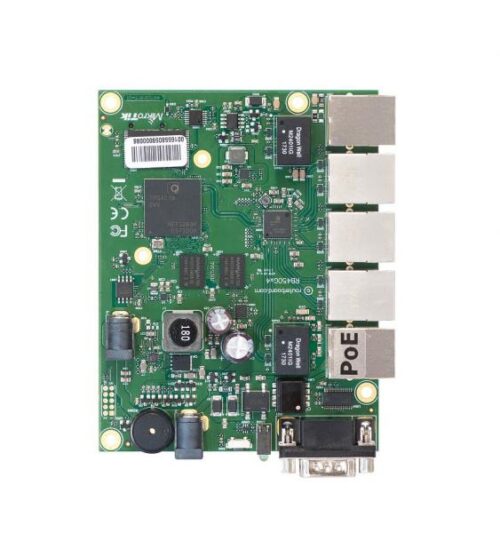

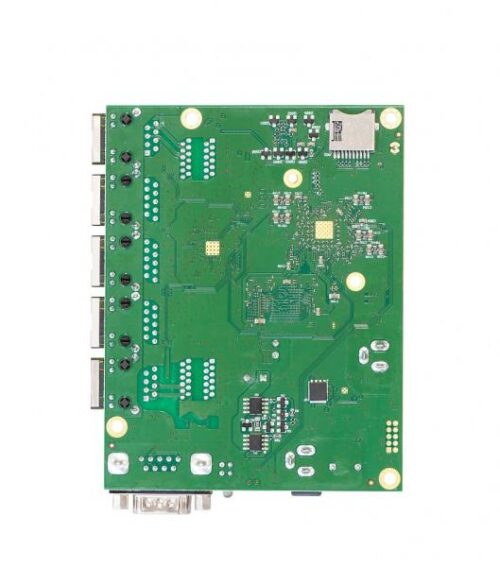

The RB450Gx4 is an Ethernet router with five Gigabit Ethernet ports, a serial port, 512 MB NAND memory and a microSD card slot. In addition, it supports full 10 V – 57 V input by two power jacks or PoE (802.3af/ at or passive PoE) and can provide PoE output for Ethernet port #5.

It is powered by MikroTik RouterOS. It comes without an enclosure, you are free to use it in your own. The device form factor is identical to our previous RB850 and RB450 series, so you can even use the same enclosures.

The device is powered by a quad core ARM CPU, has 1 GB of RAM and supports hardware IPsec encryption. The device is powered by RouterOS – the operating system, which will turn this powerful system into a highly sophisticated router, firewall or bandwidth manager.

Specifications RB450Gx4

Architecture: ARM 32bit
CPU: IPQ-4019
CPU core count: 4
CPU nominal frequency: 716 MHz
Dimensions: 90 x 115 mm
License leve: 5
Operating System: RouterOS
Size of RAM: 1 GB
Storage size: 512 MB
Storage type: NAND

PoE in: 802.3af/at
PoE out: Passive PoE
PoE in input Voltage: 12-57 V
Number of DC inputs: 3 (DC jack, PoE-IN)
DC jack input Voltage: 10-57 V
Max power consumption: 16 W
Max power consumption without attachments: 4 W
10/100/1000 Ethernet ports: 5

Package Contents

RB450Gx4
