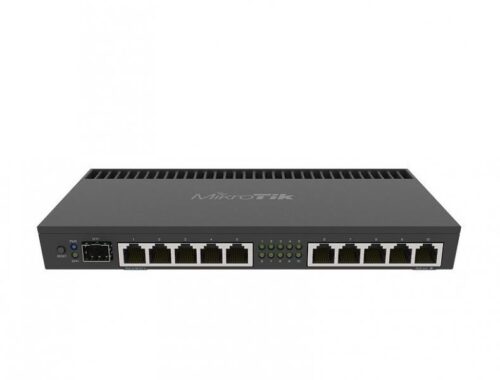

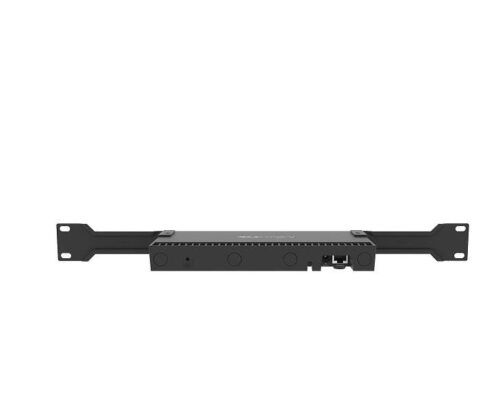

The RB4011 uses a quad core Cortex A15 CPU, same as in our carrier grade RB1100AHx4 unit. The unit is equipped with 1GB of RAM, can provide PoE output on port #10 and comes with a compact and professional looking solid metal enclosure in matte black. RB4011iGS+RM (Ethernet model) includes two rackmount ears that will securely fasten the unit in a standard 1U rack space.

Specifications RB4011iGS+RM

Architecture: ARM 32bit
CPU: AL21400
CPU core count: 4
CPU nominal frequency: 1400 MHz
Dimensions: 228 x 120 x 30 mm
License level: 5
Operating System: RouterOS
Size of RAM: 1 GB
Storage size: 512 MB
Storage type: NAND
Tested ambient temperature: -40 C to 70 C

PoE in: Passive PoE
PoE in input Voltage: 18-57 V
PoE out: Passive PoE up to 57V
PoE-out ports: Ether10
Number of DC inputs: 2 (DC jack, PoE-IN)
DC jack input Voltage: 12-57 V
Max out per port output (input > 30 V): 400 mA
Max out per port output (input < 30 V): 600 mA
Max total out (A): 600 mA
Max power consumption: 33 W
Max power consumption without attachments: 18 W
10/100/1000 Ethernet ports: 10
SFP+ ports: 1

Package Contents

RB4011iGS+RM, 24V 1.5A power adapter, 4011 ears (2).
