The RB3011 is a new multi port device, our first to be running an ARM architecture CPU for higher performance than ever before. The RB3011 has ten Gigabit ports divided in two switch groups, an SFP cage and for the first time a SuperSpeed full size USB 3.0 port, for adding storage or an external 3G/4G modem.

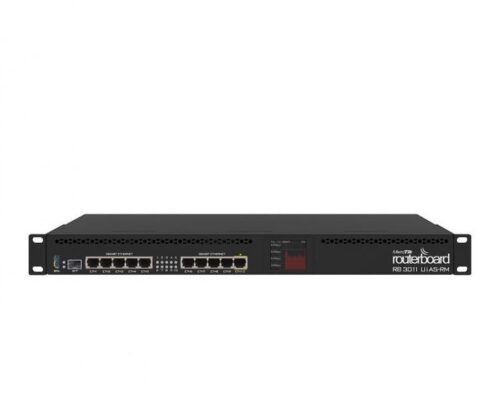

RB3011UiAS-RM Unit comes with 1U rackmount enclosure, a touchscreen LCD panel, a serial console port and PoE output functionality on the last Ethernet port.

Specifications RB3011UiAS-RM

Architecture: ARM 32bit
CPU: IPQ-8064
CPU core count: 2
CPU nominal frequency: 1.4 GHz
Dimensions: 443 x 92 x 44 mm
License level: 5
Operating System: RouterOS
Size of RAM: 1 GB
Storage size: 128 MB
Storage type: NAND
Tested ambient temperature: -20 C to 70 C

PoE in: Passive PoE
PoE in input Voltage: 10-30 V
PoE out: Passive PoE
PoE-out ports: Ether10
Number of DC inputs: 2 (DC jack, PoE-IN)
DC jack input Voltage: 10-30 V
Max out per port output (input < 30 V): 600 mA
Max total out (A): 600 mA
Max power consumption: 30 W
Max power consumption without attachments: 10 W
10/100/1000 Ethernet ports: 10
SFP ports: 1

Package Contents

RB3011UiAS-RM, 24V 1.2A power adapter.
