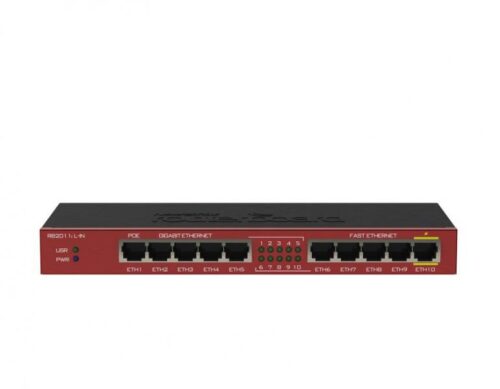

The RB2011iL-IN is the most basic model, with five Gigabit ethernet ports, five Fast ethernet ports, power jack and PoE support. It’s powered by the new Atheros next generation 600MHz 74K MIPS network processor and has 64MB of RAM and a Level4 RouterOS license.

There is PoE output function for port #10 – it can power other PoE capable devices with the same voltage as applied to the unit. Maximum load on the port is 500mA.RouterBOARD 2011iL-IN comes with desktop enclosure and power supply.

Specifications RB2011iL-IN

Architecture: MIPSBE
CPU: AR9344
CPU core count: 1
CPU nominal frequency: 600 MHz
Dimensions: 228x97x25mm
License level: 4
Operating System: RouterOS
Size of RAM: 64 MB
Storage size: 128 MB
Storage type: NAND
Tested ambient temperature: -35 C to +65 C

PoE in: Passive PoE
PoE in input Voltage: 8-30 V
PoE out: Passive PoE
PoE-out ports: Ether10
Number of DC inputs: 2 (DC jack, PoE-IN)
DC jack input Voltage: 8-30 V
Max out per port output (input < 30 V): 500 mA
Max total out (A): 500 mA
Max power consumption: 18 W
Max power consumption without attachments: 6 W
10/100 Ethernet ports: 5
10/100/1000 Ethernet ports: 5

Package Contents

RB2011iL-IN, 24V 1.2A power adapter
