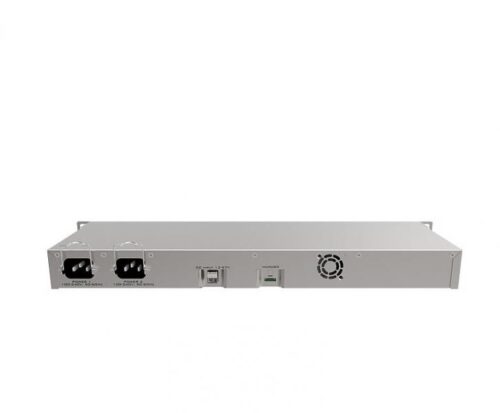

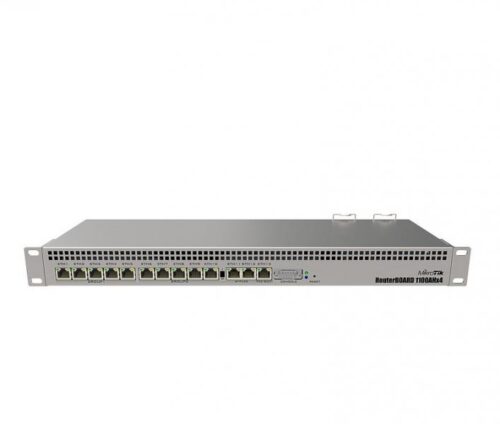

Introducing RB1100AHx4, 13x Gigabit Ethernet ports Router, powered by Annapurna Alpine AL21400 CPU with four Cortex A15 cores, clocked at 1.4GHz each, for a maximum throughput of up to 7.5Gbit. The device supports IPsec hardware acceleration (up to 2.2Gbps with AES128). Unit comes with 1U rackmount case, RS232 serial port and dual redundant power supplies (with -48v DC telecom power and 802.3at/af support).

Specifications RB1100x4

Architecture: ARM 32bit
CPU: AL21400
CPU core count: 4
CPU nominal frequency: 1.4 GHz
Dimensions: 443 x 148 x 44 mm
License level: 6
Operating System: RouterOS
Size of RAM: 1 GB
Storage size: 128 MB
Storage type: NAND
Tested ambient temperature: -40 C to 70 C

PoE in: 802.3af/at
PoE in input Voltage: 20-57 V
Number of AC inputs: 2
AC input range: 100-240
Number of DC inputs: 2 (2-pin terminal, PoE-IN)
2-pin terminal input Voltage: -48, 12-57 V
Max power consumption: 20 W
10/100/1000 Ethernet ports: 13

Package Contents

RB1100x4, K10 R2 screw kit, Rack ears, IEC cord (2)
