Apparaat compatibiliteit:

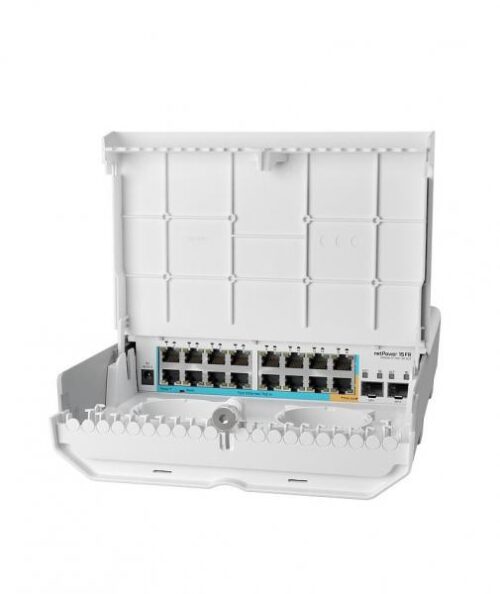

MikroTik netPower 15FR

Productomschrijving

Please note: The power supply is NOT included with the product and must be purchased separately.

With netPower 15FR switch you can forget about expensive GPON base stations and optical splitters. This switch is a part of our GPEN concept – aimed to bring the speed and versatility of fiber networking while using the advantages of Ethernet. It is an easy to deploy, low-cost way for any ISP to deliver the Internet to individual apartments.

You do not have to worry about power options in the attic or the utility room – netPower 15FR has 15 reverse PoE ports. Depending on your setup, netPower can draw the necessary power even from a single client! Another Ethernet port has PoE-out – you can use it to power an aggregate link such as our Wireless Wire Dish or a security camera, for example.

There are two SFP ports for fiber connectivity. The outdoor enclosure allows you to install this switch in all kinds of environments – from damp attics to elevator shafts and different poles with hose clamps. netPower 15FR – bringing the cost down and the speed up!

netPower 15FR has a non-blocking throughput of 3.6 Gbps, switching capacity of 7.2 Gbps and forwarding rate of 5.4 Mpps.

Specifications netPower 15FR

10/100 Ethernet ports: 16
SFP ports: 2
CPU temperature monitor: Yes
Voltage Monitor: Yes

Architecture: ARM 32bit
CPU: 98DX224S
CPU core count: 1
CPU nominal frequency: 800 MHz
Dimensions: 304 x 212 x 71 mm
License level: 5
Operating System: SwOS / RouterOS (Dual boot)
Size of RAM: 256 MB
Storage size: 16 MB
Storage type: FLASH
Tested ambient temperature: -40C to 70C

PoE in: Passive PoE
PoE in input Voltage: 18-57 V
PoE-out ports: Ether15
Number of DC inputs: 2 (DC jack, PoE-IN)
DC jack input Voltage: 18-57 V
Max out per port output (input > 30 V): 0.5 A
PoE out: Passive PoE
Max out per port output (input < 30 V): 0.75 A
Max total out (A): 0.75 A
Max power consumption: 29 W
Max power consumption without attachments: 10 W

Package Contents

netPower 15FR, Hose clamp 1, Hose clamp 2, K-66 fastening set, DC to Terminal block adapter

Productspecificaties

Merk

MikroTik

Documenten

MikroTik

MikroTik netPower 15FR
