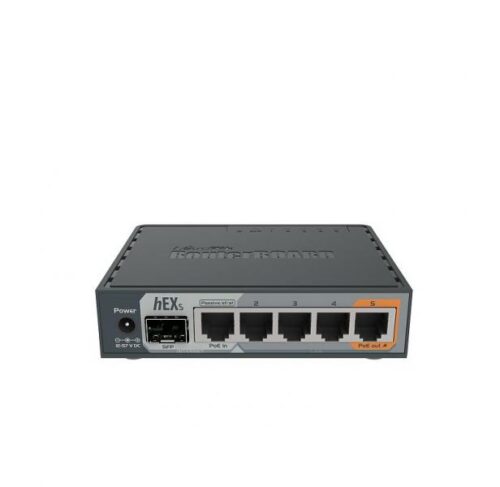

hEX S is a five port Gigabit Ethernet router for locations where wireless connectivity is not required. Compared to the hEX, the hEX S also features an SFP port and PoE output on the last port.

It is affordable, small and easy to use, but at the same time comes with a very powerful dual core 880 MHz CPU and 256 MB RAM, capable of all the advanced configurations that RouterOS supports. The device has a USB 2.0, PoE output for Ethernet port #5 and a 1.25Gbit/s SFP cage.

IPsec hardware encryption (~470 Mbps) and The Dude server package is supported, microSD slot on it provides improved r/w speed for file storage and Dude.

Specifications hEX S

Architecture: MMIPS
CPU: MT7621A
CPU core count: 2
CPU nominal frequency: 880 MHz
CPU Threads count: 4
Dimensions: 113 x 89 x 28 mm
License level: 4
Operating System: RouterOS
Size of RAM: 256 MB
Storage size: 16 MB
Storage type: FLASH
Tested ambient temperature: -40 C to 70 C

PoE in: 802.3af/at
PoE in input Voltage: 12-57 V
Number of DC inputs: 2 (DC jack, PoE-IN)
DC jack input Voltage: 12-57 V
Max power consumption: 24 W
Max power consumption without attachments: 6 W
PoE-out ports: Ether5
PoE out: Passive PoE up to 57V
Max out per port output (input < 30 V): 500 mA
Max out per port output (input > 30 V): 500 mA
Max total out (A): 500 mA
10/100/1000 Ethernet ports: 5
SFP ports: 1

Package Contents

hEX S, 24V 1.2A power adapter,
