Let op: Dit product werkt alleen samen met een passieve PoE injector.

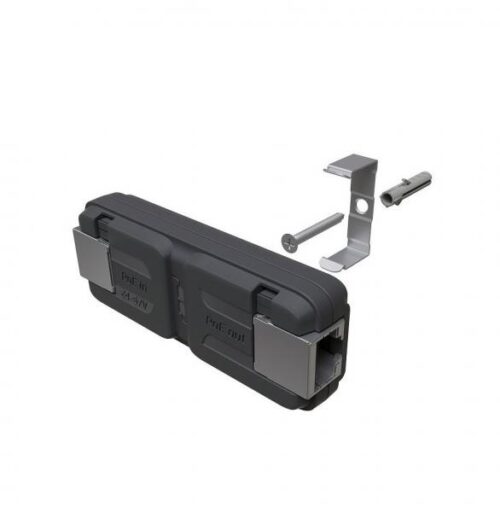

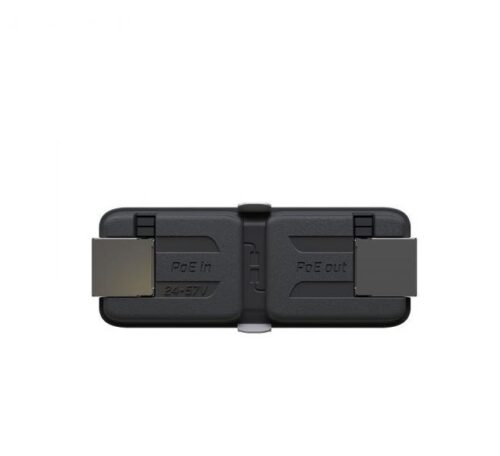

The GPeR unit allows to extend Ethernet cable by additional hop (< 100 – 150 m to regular network devices, and up to 210 m to another GPeR unit) up to 1,500 m. Handy for highrise buildings, multi-apartment buildings, with many floors and sections, where very long Ethernet cables might be a problem.

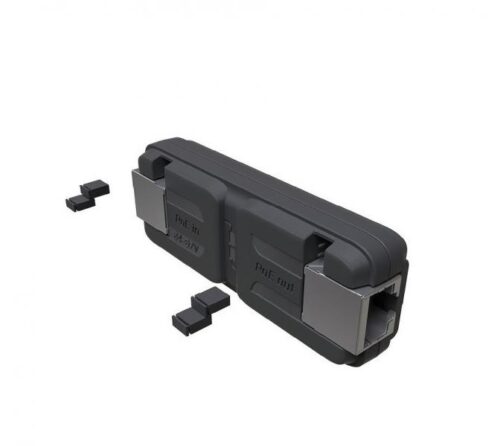

Maximium allowed length of CAT6 Ethernet cable between GPeR and power source/router is up to 100 m (depending on cable quality, high quality – up to 150 m). Maximium allowed distance of CAT6 Ethernet cable between two GPeR devices is up to 210 m (depending on cable quality). In case if the destination device does not support PoE-in powering, the PoE Passthrough can be disabled by manually removing all jumpers.

Specifications GPeR

10/100/1000 Ethernet ports: 1
Dimensions: 80x30x15mm
Number of 1G Ethernet ports with PoE-out: 1
Max out per port output (input < 30 V): 0.7 A
Max out per port output (input > 30 V): 2 A
Max total out (A): 2 A
PoE in: 802.3af/at
PoE in input Voltage: 24-57 V
PoE out: 802.3af/at
Tested ambient temperature: -40C to 70C

Package Contents

GPeR
