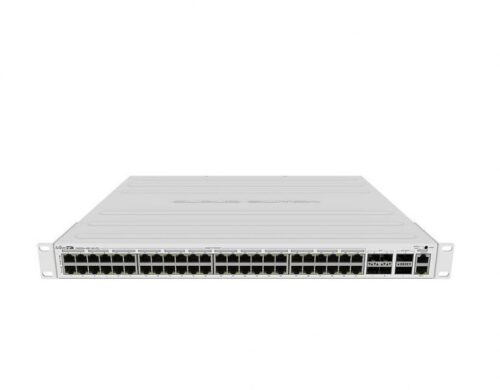

MikroTik CRS354-48P-4S+2Q+RM

Productomschrijving

If you are looking for a single switch that will put your network setup ahead of the curve and power all the necessary devices – look no further! The new CRS354-48P-4S+2Q+RM is an effective and adaptable rackmount solution for managing networks in the most demanding environments. Unlike many other switches out there, our products are made with the system administrator in mind.

This powerful switch has 48 x 1G RJ45 ports and 4 x 10G SFP+ ports. There are also 2 x 40G QSFP+ ports for extremely fast fiber connections or linking with other 40 Gbps devices. All 48 Ethernet ports offer different power output options: Passive PoE, low voltage PoE, 802.3af/at (Type 1 PoE / Type 2 PoE+) with auto-sensing, making this switch the easiest solution to power even the largest setups. We have included a mighty power supply that can provide 750 W of power – this switch can handle a lot. And there is a special bracket for easy cable management.

CRS354-48P-4S+2Q+RM is extremely functional, and it has the best price-point on the market – it will make the perfect addition to a professional setup. The total non-blocking throughput is 168 Gbps, switching capacity is 336 Gbps and the forwarding rate reaches 235 Mpps.



Specifications CRS354-48P-4S+2Q+RM

10/100 Ethernet ports: 1
10/100/1000 Ethernet ports:: 48
SFP+ ports: 4
Number of 40G QSFP+ ports: 2 2
Serial port: RJ45

Architecture: MIPSBE
CPU: QCA9531
CPU core count: 1
CPU nominal frequency: 650 MHz
Dimensions: 443 x 382 x 44 mm
License level: 5
Operating System: RouterOS
Size of RAM: 64 MB
Storage size: 16 MB
Storage type: FLASH
Tested ambient temperature: -20C to 60C

PoE-out ports: Ether1-Ether48
Number of AC inputs: 1
Max out per port output (input > 30 V): 566 mA
AC input range: 100-240
PoE out: 802.3af/at
Max out per port output (input < 30 V) : 1000 mA
Max total out (A): 27A (low voltage (26V)) OR 13.2A (high voltage (53V)) A
Max power consumption: 800 W
Max power consumption without attachments: 85 W





Package Contents

CRS354-48P-4S+2Q+RM, IEC cord, Cable management brackets, Rackmount ears (CRS354), K-68 screw kit, Rackmount rear support ears (1/2), Rackmount rear suppor tears (2/2)
