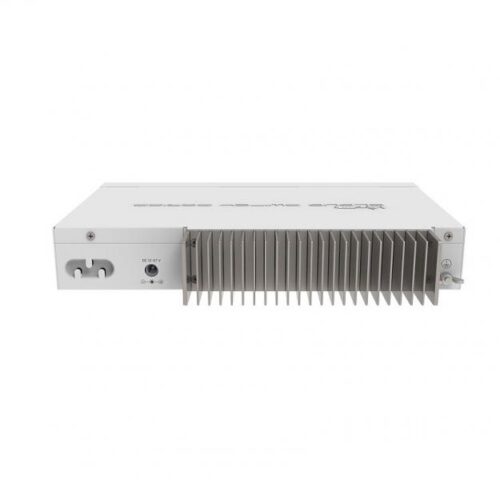

The CRS309-1G-8S+ is a very compact, yet powerful networking switch. It has eight SFP+ slots, supporting up to 10 Gbit module in each, which results in a total switching capacity of 162 Gbps and total non-blocking throughput of 81 Gbps.

The device also has dual-core 800 MHz CPU, 512 MB RAM, a management Ethernet port with PoE power input, RS232 serial port, a grounding terminal and is capable of dual boot (choose which operating system you prefer, RouterOS, or SwOS).

Specifications CRS309-1G-8S+IN

Architecture: ARM 32bit
CPU: 98DX8208
CPU core count: 2
CPU nominal frequency: 800 MHz
Dimensions: 272 x 158 x 44 mm
License level: 5
Operating System: RouterOS / SwitchOS
Size of RAM: 512 MB
Storage size: 16 MB
Storage type: FLASH
Tested ambient temperature: -40 C to 70 C

PoE in: 802.3af/at
PoE in input Voltage: 18-57 V
Number of DC inputs: 2 (DC jack, PoE-IN)
DC jack input Voltage: 12-57 V
Max power consumption: 23 W
Max power consumption without attachments: 17 W
10/100/1000 Ethernet ports: 1

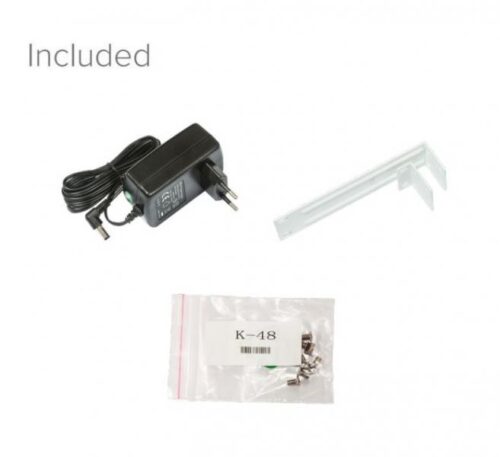

Package Contents

CRS309-1G-8S+IN, 24V 1.2A power adapter, K48 screw kit, Ears.
