MikroTik Cloud Router Switch 112-8P-4S-IN

Productomschrijving

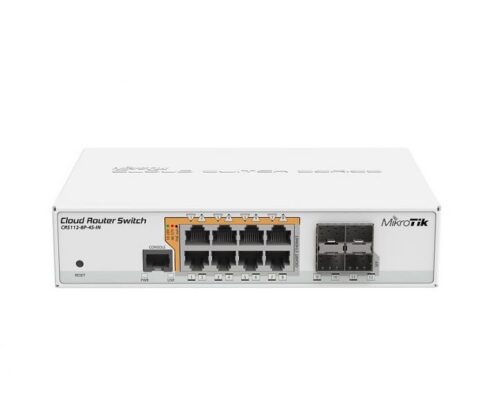

CRS112-8P-4S-IN is eight Gigabit RJ45 ports PoE switch, that offers different power output options: autosensing 802.3af/at PoE/PoE+ and Passive PoE, and four SFP ports provide optical fiber connectivity options to support uplinks of up to 1 Gbps.

CRS112-8P-4S-IN is equipped with 12 independent switching ports. 28 V 3.4 A power supply is already included in the box. There is secondary DC jack on the back of the enclosure that supports 48-57 V power supply (not included, can be purchased separately). CRS112-8P-4S-IN can power 802.3af/at devices if 48-57 V DC input is used (unit will automatically detect and provide correct power to devices). Max current is 1 A per port if input voltage is 18-28 V, 450 mA if 48-57 V. Total limit is 2.8A@24V and 1.4A@48-57V.

Specifications CRS112-8P-4S-IN

Architecture: MIPSBE
CPU: QCA8511
CPU core count: 1
CPU nominal frequency: 400 MHz
Dimensions: 200 x 142 x 44 mm
License level: 5
Size of RAM: 128 MB
Storage size: 16 MB
Storage type: FLASH
Tested ambient temperature: -20 C to 60 C

PoE out: 802.3af/at
PoE-out ports: Ether1-Ether8

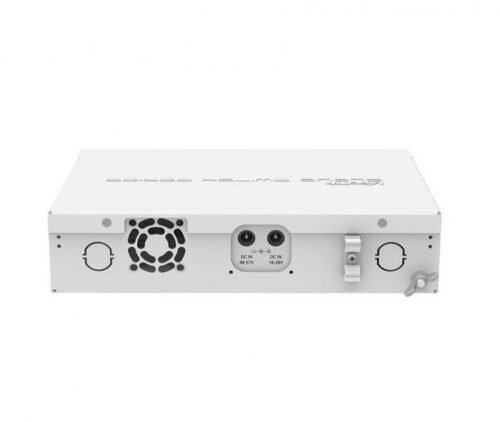

Number of DC inputs: 2 (DC jack)
DC jack input Voltage: 18-28 V / 48-57 V
Max out per port output (input > 30 V): 450 mA
Max out per port output (input < 30 V): 1 A
Max total out (A): 2.8A (24V) & 1.4A (48V-57V)
Max power consumption: 160 W
Max power consumption without attachments: 10 W
10/100/1000 Ethernet ports: 8
Number of 1G Ethernet ports with PoE-out: 8
SFP ports: 4
Serial port: RJ45

Package Contents

CRS112-8P-4S-IN, IEC cord, 28V 3.4A power adapter, K48 screw kit, Rack ears.

Productspecificaties

Merk

MikroTik

MikroTik

MikroTik Cloud Router Switch 112-8P-4S-IN

148,95 incl. BTW
123,10 excl. BTW

Voor 17:00 besteld, dezelfde dag verzonden.
Reuze assortiment
Voor €5 bij je thuisbezorgd!
Niet goed, geld terug
