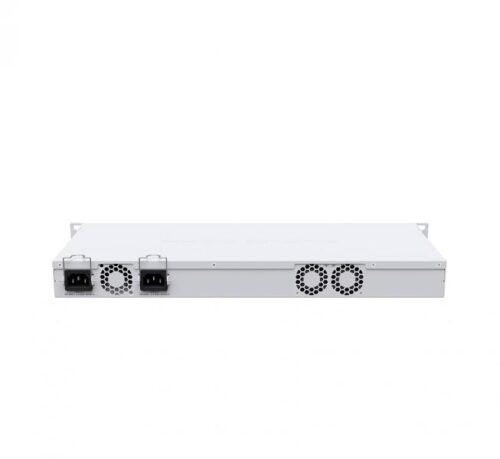

CCR1036-12G-4S is an industrial grade router with cutting edge 36 core CPU. If you need many millions of packets per second – Cloud Core Router with 36 cores is your best choice. The device comes in a 1U rackmount case, has four SFP ports, twelve Gigabit ethernet ports, a serial console cable and a USB port. The new r2 version has onboard 8GB of RAM, onboard M.2 slot, full size USB slot and dual PSU for redundancy!

Specifications CCR1036-12G-4S-EM

Architecture: TILE
CPU: TLR4-03680
CPU core count: 36
CPU nominal frequency: 1.2 GHz
Dimensions: 355x145x44mm
License level: 6
Operating System: RouterOS
Size of RAM: 8 GB
Storage size: 1 GB
Storage type: NAND
Tested ambient temperature: -20 C to 60 C

Number of AC inputs: 2
AC input range: 100-240
Max power consumption: 60 W
10/100/1000 Ethernet ports: 12
SFP DDMI: Yes
SFP ports: 4

Package Contents

CCR1036-12G-4S-EM, screw and feet kit (K10), 2x IEC cords, Rack ears.
