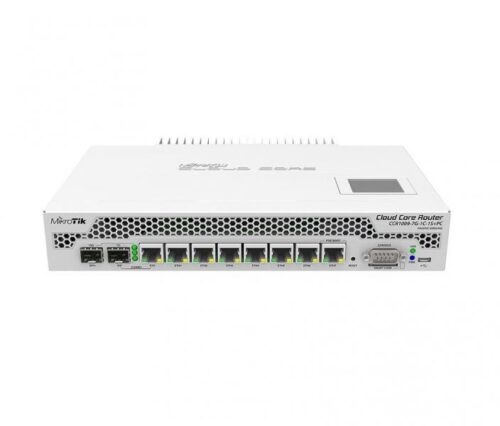

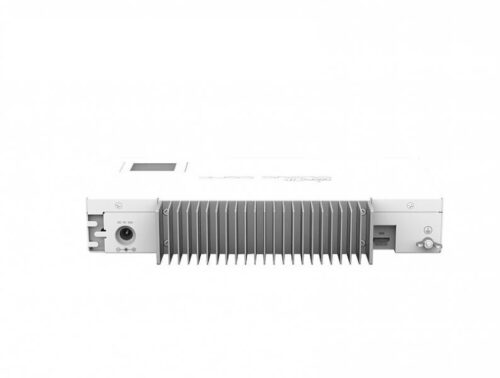

The new updated revision of CCR1009-7G-1S-1S+PC is here. We attempted to combine all the customer feedback and best practice in CCR device manufacturing that we learned over the last three years, since the frst CCR1009 devices were launched.

• No switch-chip
• Combo-port
• 100Mbps SFP support
• More throughput

Specifications CCR1009-7G-1C-1S+PC

Architecture: TILE
CPU: TLR4-00980
CPU core count: 9
CPU nominal frequency: 1 GHz
Dimensions: 272x190x47mm
License level: 6
Operating System: RouterOS
Size of RAM: 2 GB
Storage size: 128 MB
Storage type: NAND
Tested ambient temperature: -20 C to 60 C

PoE in: Passive PoE
PoE in input Voltage: 18-57 V
Number of DC inputs: 2 (PoE-IN, DC jack)
DC jack input Voltage: 18-57 V
Max power consumption: 38 W
Max power consumption without attachments: 33 W
10/100/1000 Ethernet ports: 7
Ethernet Combo ports: 1
SFP+ ports: 1

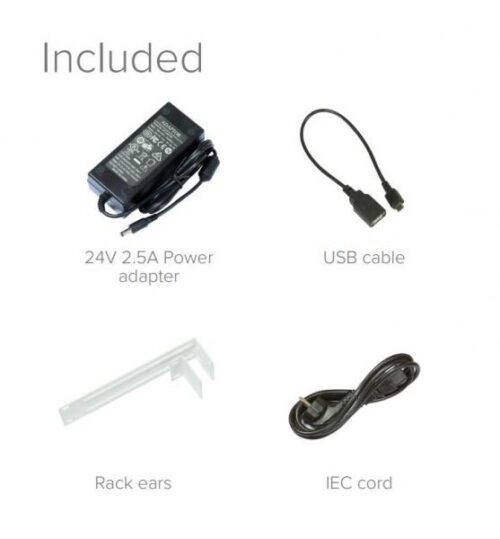

Package Contents

CCR1009-8G-1S-1S+PC, 24V 2.5A Power adapter, USB OTG cable, Rack ears, IEC cord.
